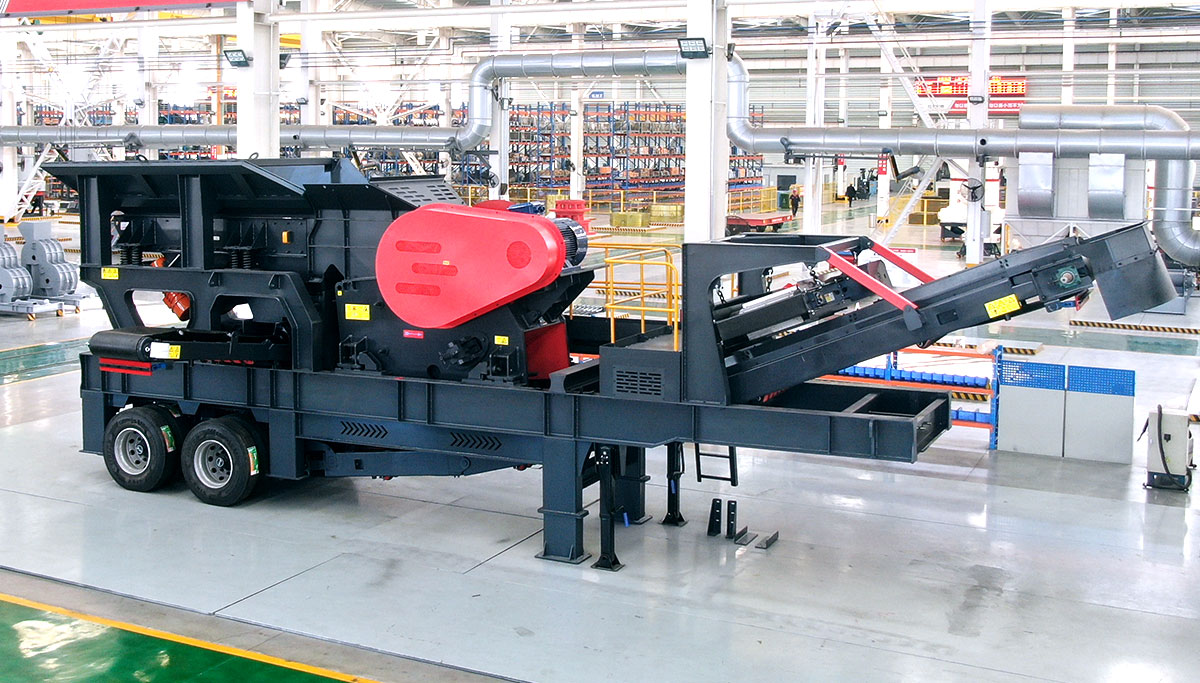

MTN輪胎式移動破碎篩分站

2HX2165
車載設備
50-300(t/h)
生產能力
15500x2900x420(mm)
運輸尺寸

技術參數

Technical parameters

系列	標準型號	車載設備	車載設備	處理量(t/h)	運輸尺寸
四組合移動站	MTN100Y-2	GZD850X3000/2YK1545	HD72/GYS300	50-100	15000x2650x4500
	MTN100Y-3	GZDT0835/3ZD1548	HDX86/SC100F1	50-100	17500x2500x4000
	MTN150Y-3	GZDT0835/3ZD1548	HDX86/SC160F1	70-150	17500x2500x4000
	MTN150R-3	GZDT0835/3ZD1548	HDX86/CI1110	60-150	17500x2500x4000
粗碎移動站	MTN96	GZDT9538	CJ96	70-200	13000x2950x4250
	MTN98	GZDT9538	HDX98	80-200	13000x2950x4250
	MTN106	GZDT1145A	CJ106	90-300	14000x3000x4400
	MTN110	GZDT1145A	HDX110	120-300	14000x3000x4400
	MTN1213C	GZDT9538	CI1213	80-200	13000x2950x4250
	MTN1316C	GZDT1145A	CI1316	100-300	14000x3000x4400
中細碎移動站	MTN300	-	HPM300C1	100-200	15500x2900x4200
	MTN400	-	HPM400C3	150-300	16500x3100x4300
	MTN250	-	SC250F1	90-200	16500x3100x4300
	MTN1213	-	CI1213	80-200	16000x2900x4300
	MTN1316	-	CI1316	100-300	16500x3100x4500
	MTN0926	-	HVI0926	85-200	16500x3100x4300
	MTN1040	-	HVI1040	120-300	16500x3100x4400
篩分移動站	MTN1865-3	-	3ZD1865	65-200	14500x2900x4000
篩分移動站	MTN2165-3	-	3ZD2165	85-300	15000x2900x4400
中細碎篩分移動站	MTN300S-3SII	3ZD1865	HPM300C1	100-200	15000x3000x4000
	MTN300S-3	3ZD2165	HPM300C1	100-200	15000x3000x4000
	MTN400S-3	3ZD2165	HPM400C3	150-300	15000x3000x4000
	MTNG400S-3SII	3ZD1865	GYS400C1	100-200	15000x3000x4000
	MTNG400S-3	3ZD2165	GYS400C1	100-200	15000x3000x4000
	MTN250S-3	3ZD2165	SC250F1	90-200	15000x3000x4200
	MTN1213S-3	3ZD1865	CI1213	80-200	15000x3000x4200
	MTN1316S-3	3ZD2165	CI1316	100-300	15000x3000x4200
	MTN0926S-2	2ZD1865	HVI0926	85-200	18000x3000x4200
	MTN1040S-2	2ZD2165	HVI1040	120-300	18000x3000x4200
三組合移動站	MTN1213-III	GZDT9538/3ZD1865	CI1213	80-200	18200x2800x4350
	MTN1316-III	GZDT1145A/3ZD2165	CI1316	100-300	18200x3000x4200
	MTN1410-III	GZDT9538/3ZD1865	PCZ1410	80-200	18200x2800x4200
	MTN1612-III	GZDT1145A/3ZD2165	PCZ1612	100-300	18200x3000x4200

注：產量根據不同物料，進料粒度等因素其結果將有所不同

系列	標準型號	處理量 (t/h)	運輸尺寸 (mm)
四組合移動站	MTN100Y-2	50-100	15000x2650x4500
	MTN100Y-3	50-100	17500x2500x4000
	MTN150Y-3	70-150	17500x2500x4000
	MTN150R-3	60-150	17500x2500x4000
粗碎移動站	MTN96	70-200	13000x2950x4250
	MTN98	80-200	13000x2950x4250
	MTN106	90-300	14000x3000x4400
	MTN110	120-300	14000x3000x4400
	MTN1213C	80-200	13000x2950x4250
	MTN1316C	100-300	14000x3000x4400
中細碎移動站	MTN300	100-200	15500x2900x4200
	MTN400	150-300	16500x3100x4300
	MTN250	90-200	16500x3100x4300
	MTN1213	80-200	16000x2900x4300
	MTN1316	100-300	16500x3100x4500
	MTN0926	85-200	16500x3100x4300
	MTN1040	120-300	16500x3100x4400
篩分移動站	MTN1865-3	65-200	14500x2900x4000
篩分移動站	MTN2165-3	85-300	15000x2900x4400
中細碎篩分移動站	MTN300S-3SII	100-200	15000x3000x4000
	MTN300S-3	100-200	15000x3000x4000
	MTN400S-3	150-300	15000x3000x4000
	MTNG400S-3SII	100-200	15000x3000x4000
	MTNG400S-3	100-200	15000x3000x4000
	MTN250S-3	90-200	15000x3000x4200
	MTN1213S-3	80-200	15000x3000x4200
	MTN1316S-3	100-300	15000x3000x4200
	MTN0926S-2	85-200	18000x3000x4200
	MTN1040S-2	120-300	18000x3000x4200
三組合移動站	MTN1213-III	80-200	18200x2800x4350
	MTN1316-III	100-300	18200x3000x4200
	MTN1410-III	80-200	18200x2800x4200
	MTN1612-III	100-300	18200x3000x4200
